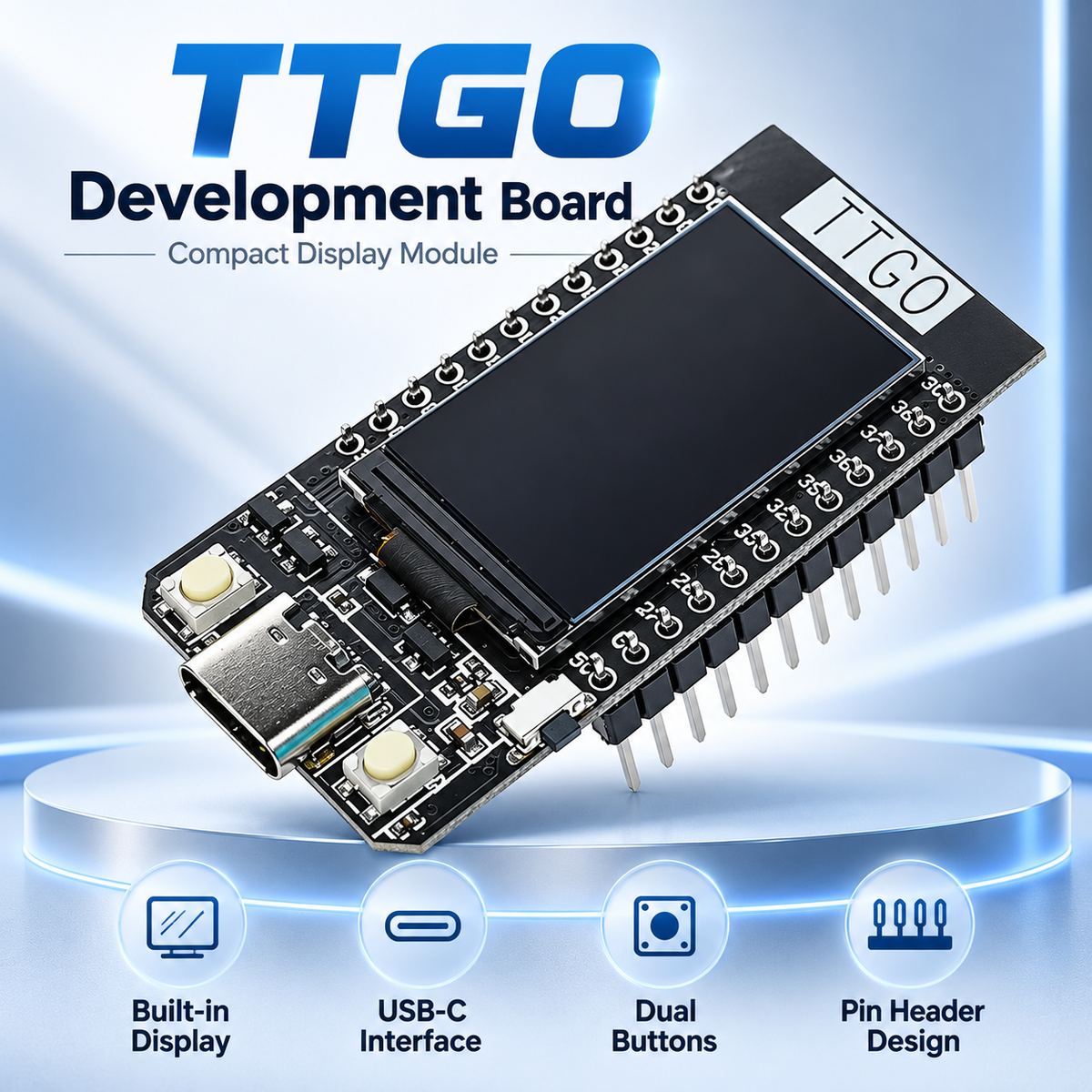

TTGO T-Display
A 1.14-inch color display built right onto a dual-core ESP32 — WiFi, Bluetooth and USB-C in a board the size of a matchbox. Start prototyping in minutes with Arduino.
See your data without wiring a screen
No external display, no breakout cables. The T-Display ships with a 1.14-inch IPS panel driven by the ST7789V — plug in via USB-C and start drawing frames within minutes.
WiFi and Bluetooth in one chip
The ESP32 pairs 802.11 b/g/n WiFi and BLE 4.2 with two Xtensa cores — enough headroom to run an MQTT dashboard, OTA updates, an HTTP server and BLE beacons at the same time.

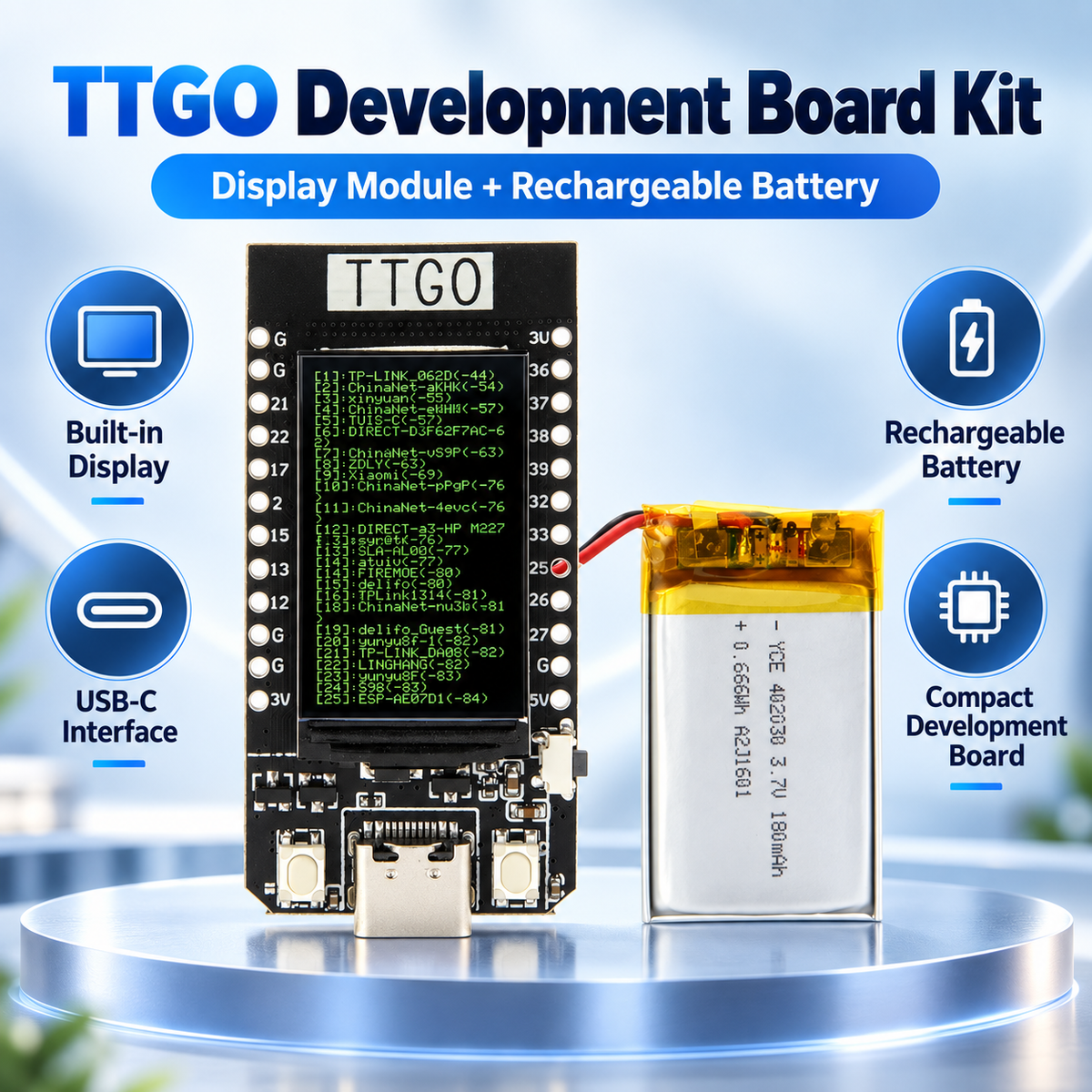

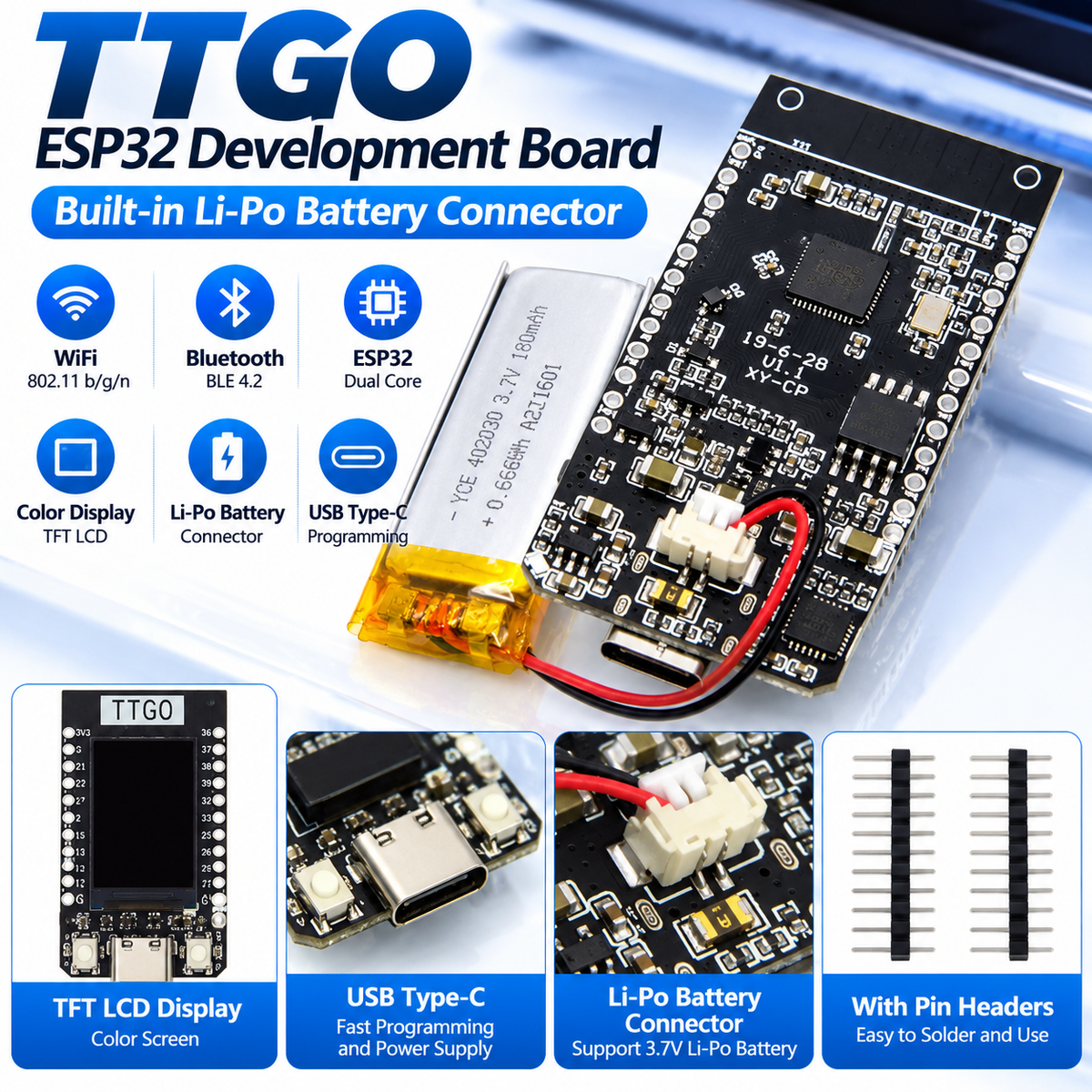

Rechargeable, portable, ready to run
An onboard 3.7V Li-Po connector means your project doesn't have to sit next to a wall socket. The kit bundles a rechargeable battery, and USB-C handles both flashing and charging.

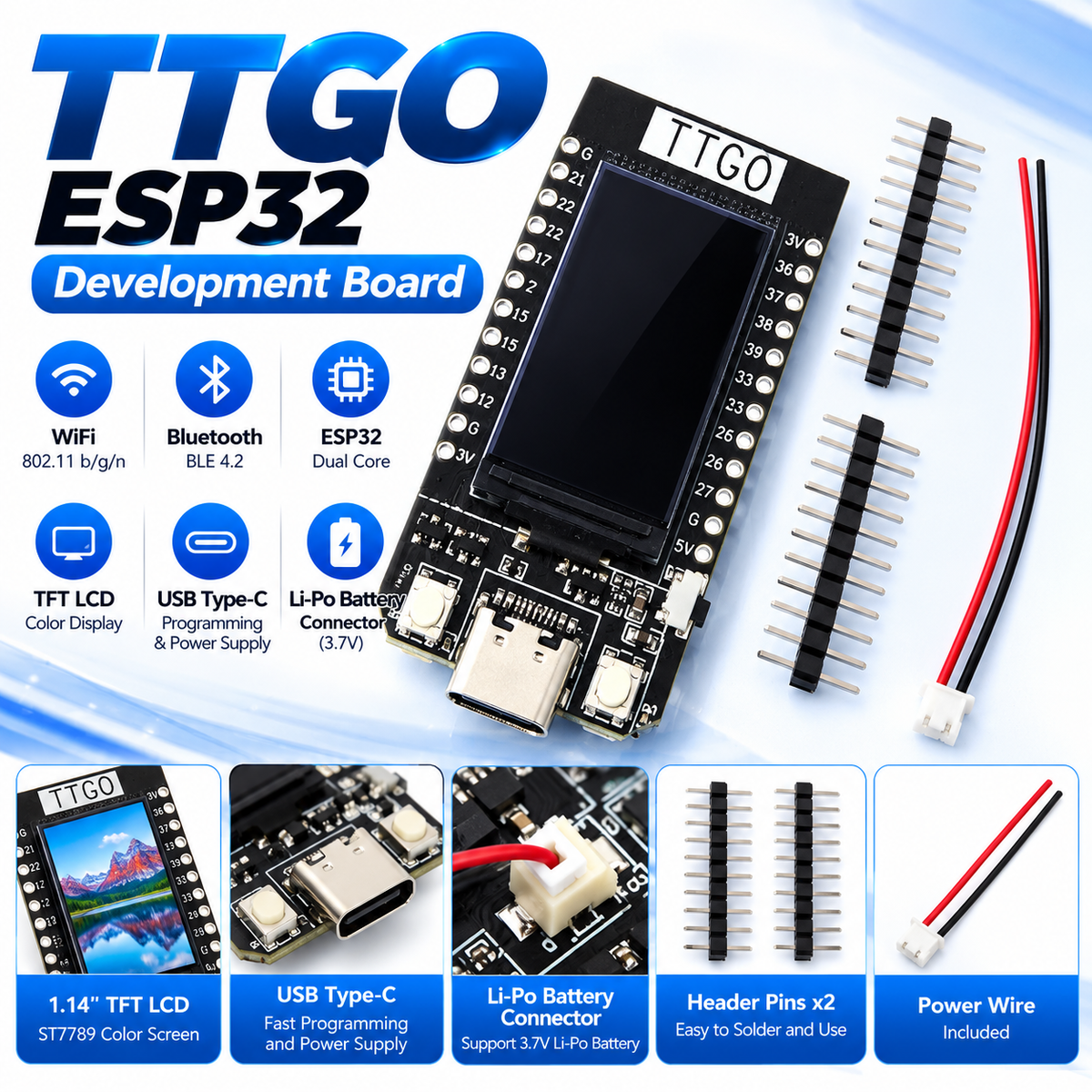

Everything you need to start building

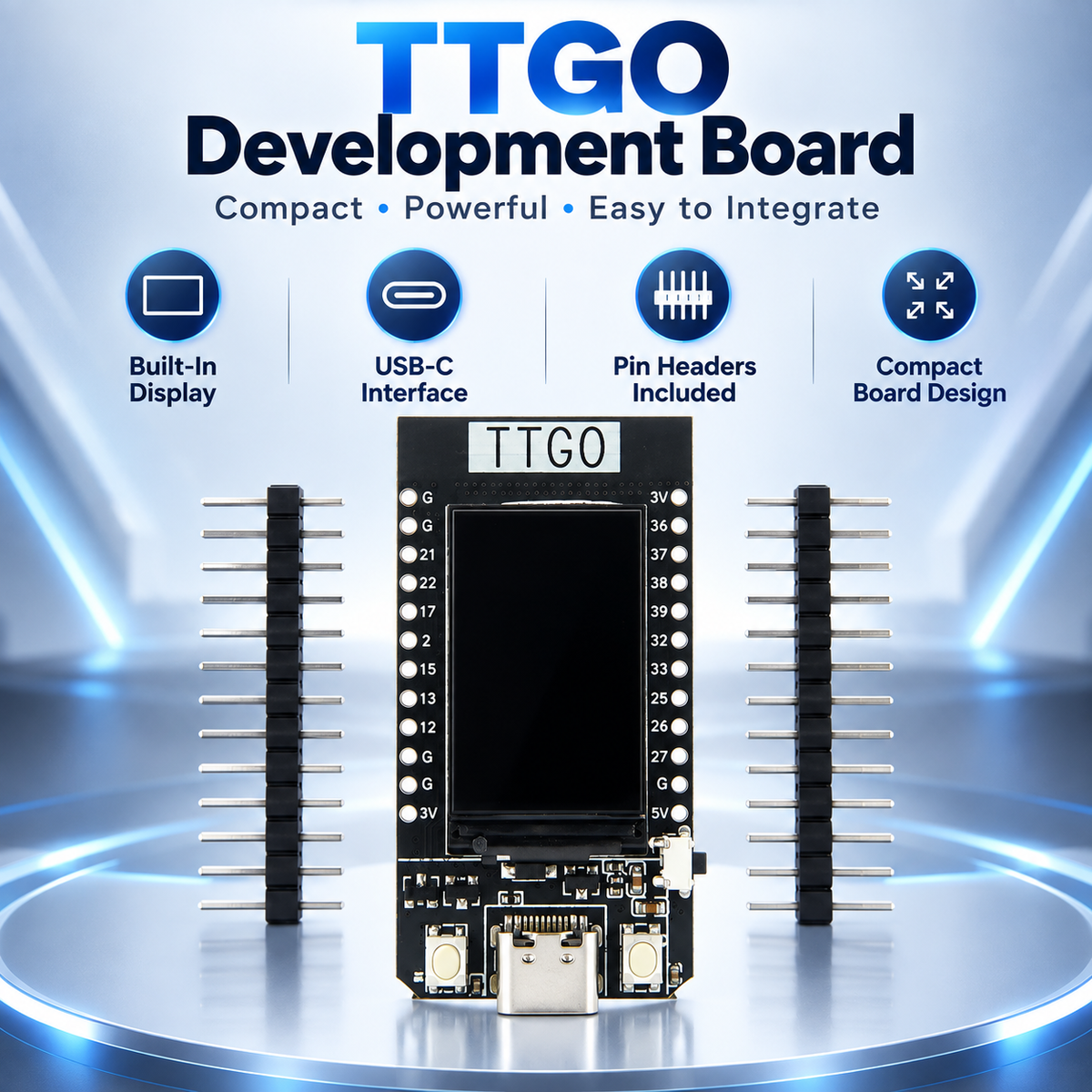

Flash firmware fast through USB Type-C, trigger actions with two onboard buttons (BOOT / GPIO35), and connect sensors with the included pin headers and power wire — breadboard-friendly from day one.

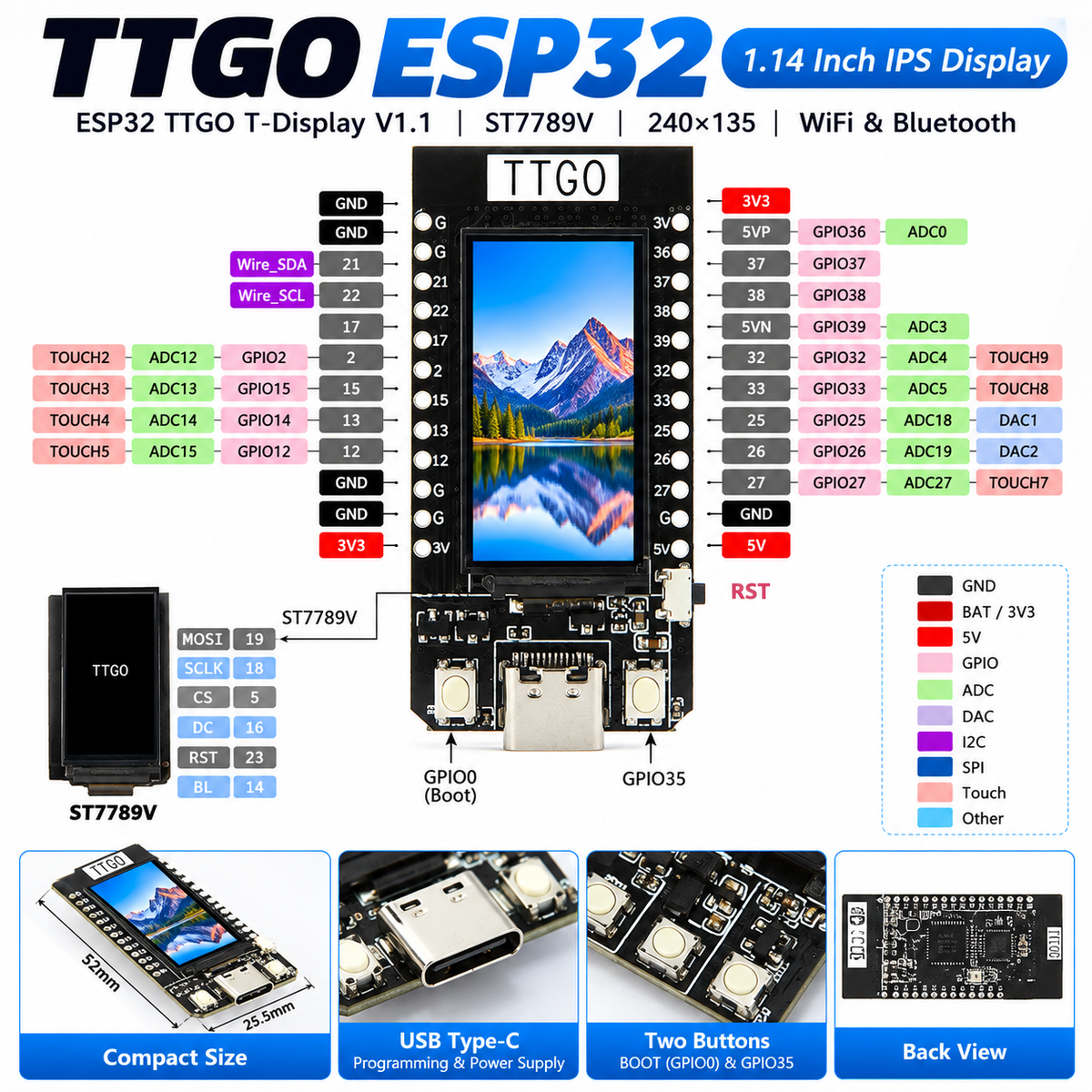

Every pin labeled — wire it in minutes
GPIO, ADC, DAC, Touch, I2C and SPI are mapped on both header rows, with the ST7789V connections documented. The 52 × 25.5 mm footprint fits tight enclosures, and the board runs on Arduino IDE, PlatformIO and MicroPython.
